O1/1.2510

O1 tool steel has deep hardening properties with fine grain structure with unusual toughness. AISI O1 tool steel offers good durability, gives excellent wear resistance and holds a good cutting edge. O1 cold work tool steels also has good response to heat treatment with small dimensional changes.

Supply Range

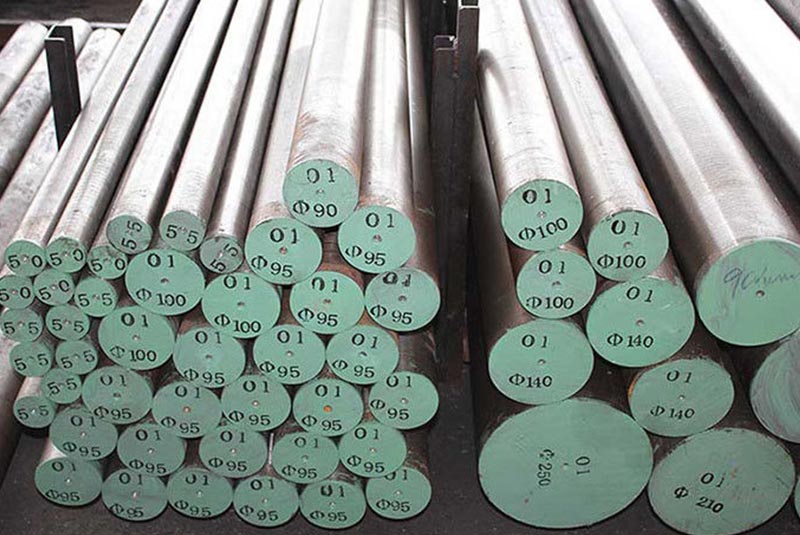

O1 Tool Steel Round Bar: diameter 8mm – 350mm

O1 Steel Plate: thickness 2mm –300mm x width 200mm – 800mm

Other dimension according to your requirements

Surface condition: Black, Rough Machined,Turned or as per given requirements.

Chemical Composition

	C	Mn	P	S	Si	Cr	V	W
O1	0.85-1.0	1.0-1.4	0.03max	0.03max	0.1-0.5	0.4-0.7	0.3max	0.4-0.6
1.2510	0.9-1.05	1.0-1.2	0.03max	0.03max	0.15-0.35	0.5-0.7	0.05-0.15	0.5-0.7

Heat Treatment

1 +A: Annealed (full/soft/spheroidizing)

2 +N: Normalized

3 +NT: Normalized and tempered

4 +QT: Quenched and tempered (water/oil)

Applications

O1 steels are mainly used for short run tooling for cold forming dies, blanking dies, and cutting tools operating at ambient temperature.

Typical applications for O1 tool steel are blanking, forming, and trim dies, gages, slitting cutters, punches, bolster dies, knock-out pins, thread roll dies, bending dies, plastic mold dies, shims, cams, machine ways, stamps, machine parts, jigs, cutter templates, swaging dies, etc.
